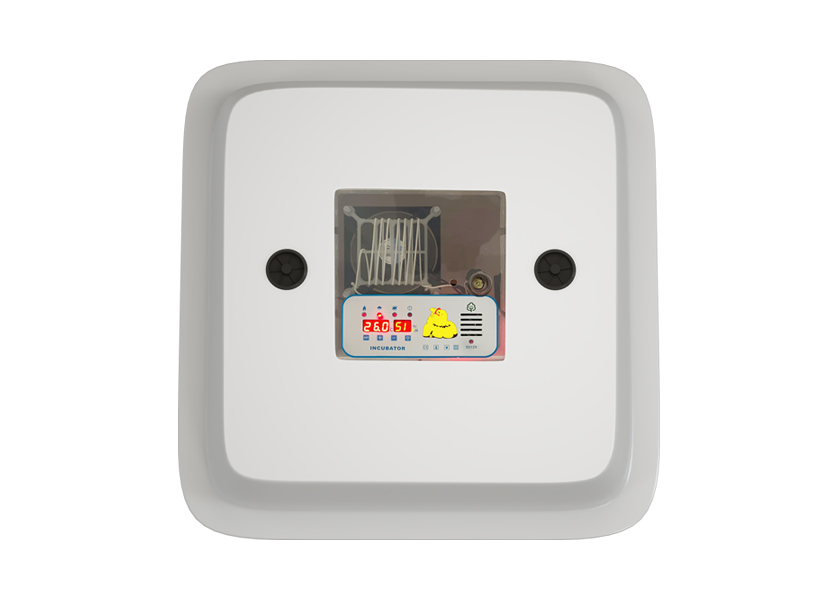

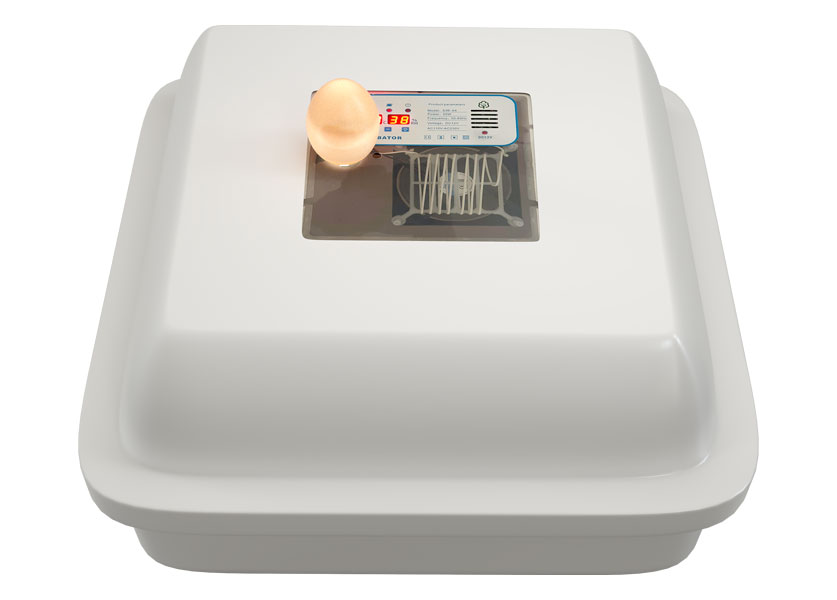

Introduction to display screen
1- Heating indicator light
2- Humidity indicator light
3- Egg turning indicator light
4- Alarm indicator light
5- Temperature display screen
6- Humidity display screen
7- Setting button
8- Add button
9- Reduce button
10- DC 12V Interface
Main Technology Parameters / Operating conditions
- Temperature display range : 0-99.9°C
- Humidity display range : 0-99%RH
- Temperature measurement :±0.1°C
- Humidity precision : +49%RH
- Working voltage : 12V/DC 110V-240V/50-60Hz
- Relative humidity : 15°C-35°C
- Power : 50W
- Environmental temperature :
<50%

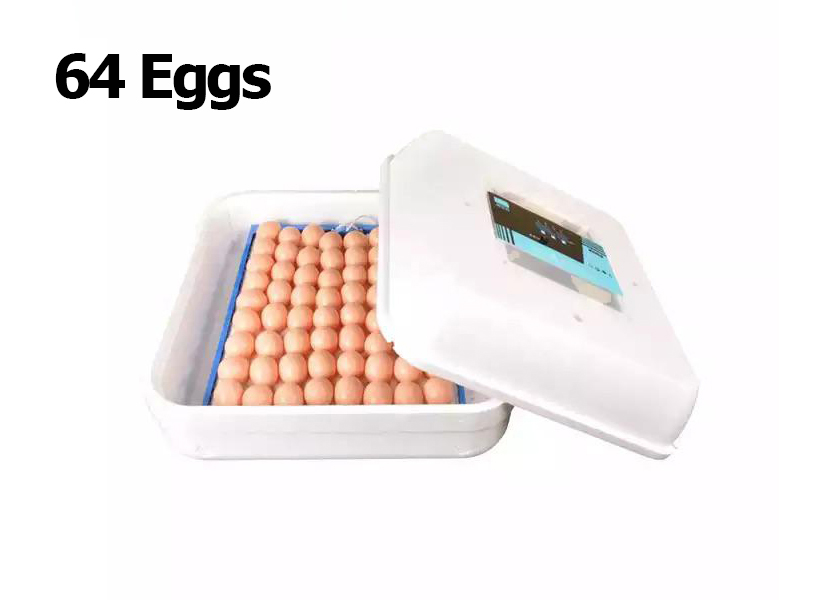

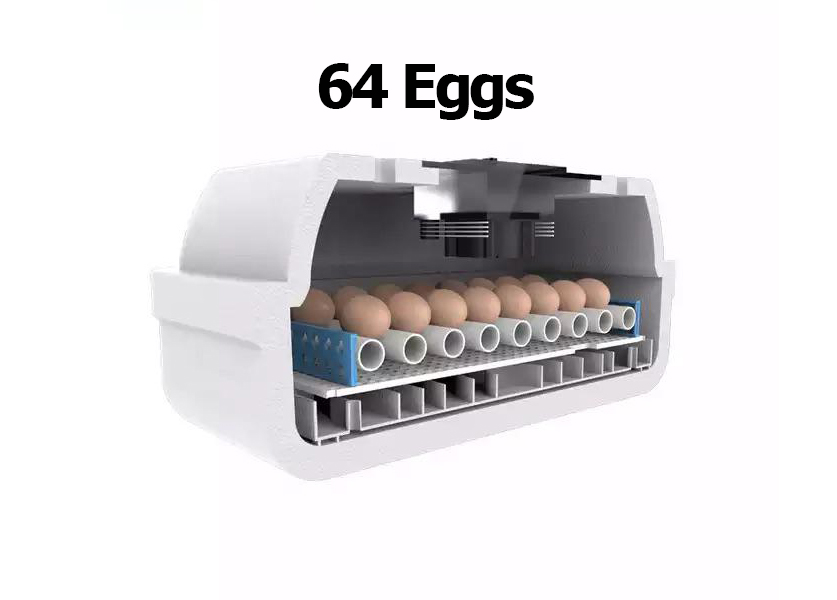

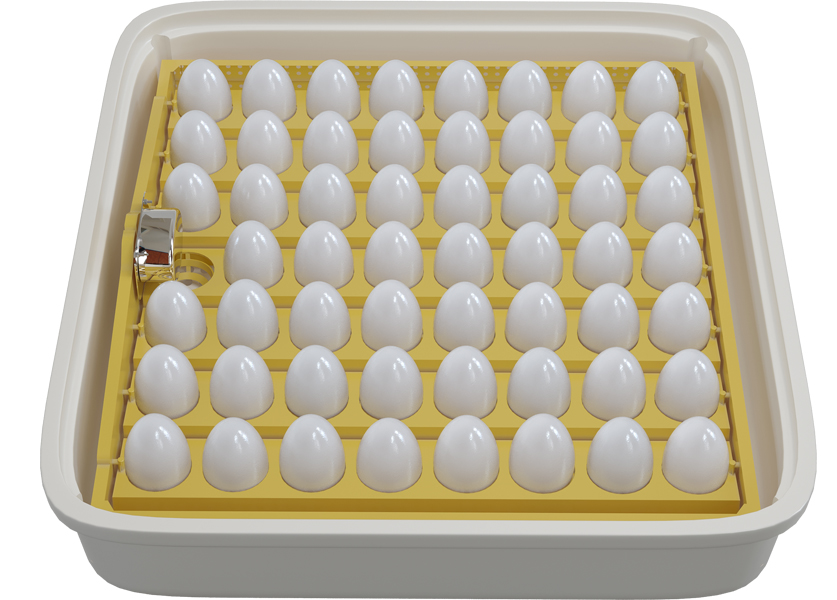

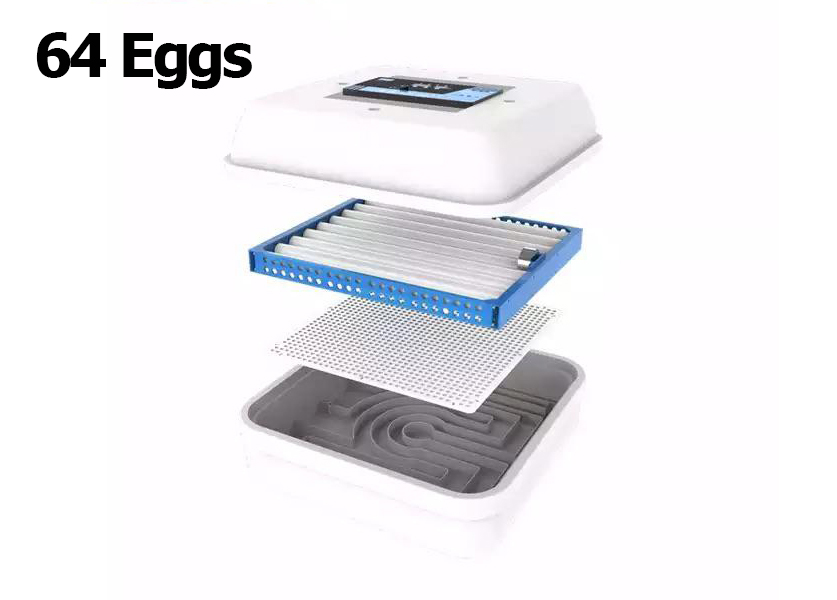

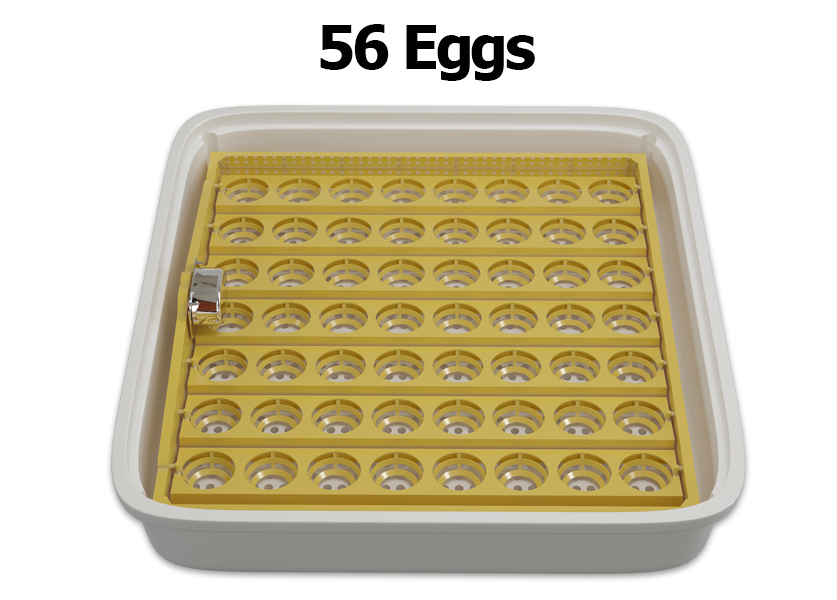

Capacity | 56-64 Eggs |
- temperature and humidity setting method
It will not be used in general. Non-professionals should not operate it.
Under normal working state, press "SET" button to set the temperature; at that time, the humidity display screen displays "pp" and the temperature display screen flickers pressor and the flickering values will increase or decrease accordingly until the temperature value you need is set. Attention: Press or button quickly and the value will increase or decrease quickly, after the adjustment, press "SET" button to set the humidity. At that time, the humidity display screen will flicker, press "+" or " and the flickering values will increase or decrease until the humidity values that you need is set; after the adjustment is completed, you can press "SET" button to save them.
Under normal working states, press "SET" button for a long time until the humidity display screen displays "P1"; then, raise your hands and the temperature display window starts to flicker, at that time, press "+" or "-" button to adjust related parameters. At the completion of the setting, press "SET" to set the next parameter. Refer to details in the table.
Code | Description Code | Factory Default | Remarks |
P1 | High temperature alarm | 38.3°C | Alarms given when temperature reaches this value. |
P2 | Upper limit value for heating. | 37.8°C | Temperature measurement value reaches this value and the heating operations will stop. |
P3 | Lower limit value for heating | 37.7°C | Temperature measurement value reaches this value and the heating operations will begin |
P4 | Low-temperature alarm | 36.5°C | Alarms given when temperature reaches this value. |
H1 | High-temperature alarm | 85%RH | Alarms given when humidity reaches this value. |
H2 | Low humidity alarm | 30%RH | Alarms given when humidity reaches this value. |
H3 | Upper limit value for humidification | 60%RH | When humidity reaches this value, it stops humidifying. |
H4 | Lower limit value for humidification | 55%RH | When humidity reaches this value, it starts humidifying. |
Fl | Egg turning cycle | 90 minutes | Time for one eggturning period |
F2 | Egg turning time | 20 seconds | Egg turning operation time |
F3 | Temperature calibration | Current measurment temprature | Calibration after its comparison with standard thermometers. |
F4 | Humidity calibration | Current measurment humidity | Calibration after its comparison with standard thermometers. |
F5 | Number of hatching days | One day |  l |
If the temperature and humidity sensors are used for a long time (after 3-5 years), there may be some deviations. They can be calibrated through accurate thermometer and hygrometer .
Attention: Values here should be set with care. The precision of the sensor configured in the machine is higher than those common thermometers and hygrometers in the market.
There will not be deviation in general. Please adjust that after you confirm that there is indeed a deviation, or else the adiustment may affect the incubation.
Weight: 7 kg
Packing dimensions: 50*50*30 cm
