2L Capacity | 5L Capacity |

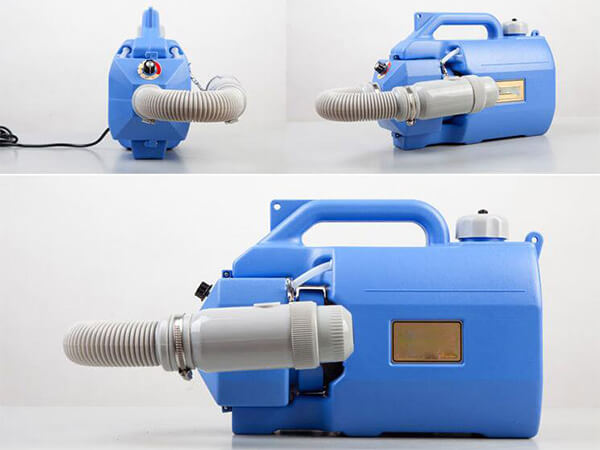

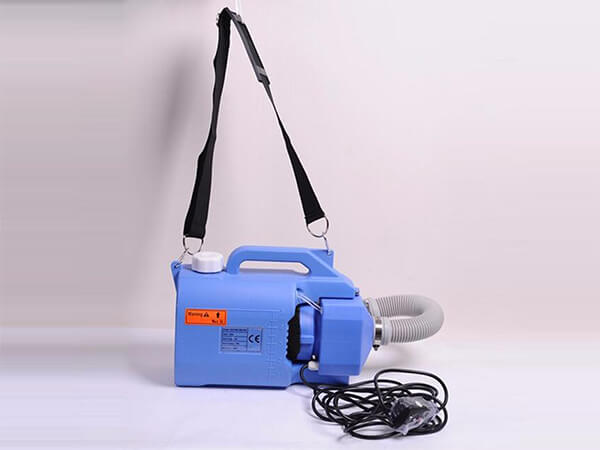

2L ULV Portable Disinfection Fogging Machine (type of electric wire and battery)
Feature of portable disinfection sprayer:
        Disinfectant fogging machine can replace the traditional artificial immune way and improve work efficiency dozens of time.
        By changing different diameter of nozzle and controlling the particles precision, the purpose is to meet all kinds of poultry spray immune work.
        Unique air pressure automatic control design ensures that use of vaccine without leakage.
        Portable work state can be flexible to adjust the immune angle to the overall immune effect.
        Wireless thermostatic control display system can effectively maintain the active vaccine.
Applications of portable disinfection sprayer:
        Disinfection, sterilization, pest control, air purification, anti-virus, disease prevention, epidemic prevention for hospital, school, hotel, household, warehouse, factory etc.
        The spraying disinfection and immunity for poultry farm, veterinary hospital, pet hospital, animal health center, entry-exit inspection and quarantine bureau, customs etc.
The specifications of disinfectant fogging machine with electric wire | |||||
Technical specifications: | HTMY-YM02A – Disinfectant Fogger Machine | ||||
Motor power (W) | 800 W | ||||
Voltage(V) | 220/110V | ||||
Atomization Volume | 50-260ml/min (adjustable) | ||||
Tank Capacity | 2L | ||||
Particle size | 20-160 μm (adjustable) | ||||
Chemical | Handles both oil- and water-based chemical solutions | ||||
Effective range | 6-8m | ||||
N./G.Weight | 3.1/4.1Kg | ||||
Package measurement (Mm) | 581×250×229.5 |
The specifications of battery type portable disinfection sprayer | |||||
Technical specifications: | HTMY-YM02A – Portable Disinfectant Fogger Machine | ||||
Motor power (W) | 240 W | ||||
Voltage(V) | 24VDC | ||||
Atomization Volume | 50-260ml/min (adjustable) | ||||
Rotating speed | 60,000 rpm | ||||
Battery size | 280mm x 80mm x 45mm | ||||
Tank Capacity | 2L | ||||
Particle size | 20-160μm (adjustable) | ||||
Chemical | Handles both oil- and water-based chemical solutions | ||||
Effective range | 6-8m | ||||
N./G.Weight | 9/9.5Kg | ||||
Package measurement (Mm) | 655mm x 220mm x 280mm |
Different nozzle and consumption time/L | |||||||
#1 | #2 | #3 | #4 | #5 | #6 | #7 | #8 |
20min/L | 10min/L | 7min42s/L | 5min 54s/L | 5min 12s/L | 4min 30s/L | 4min 12s/L | 3min 48s/L |
20um | 40um | 60um | 80um | 100um | 120um | 140um | 160um |

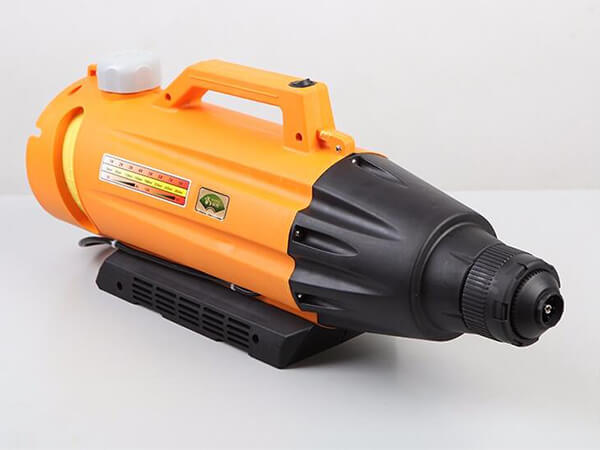

5L Portable Disinfection Forgger
Feature of Portable Disinfectant Fogging Machine:
        Strong penetration, fast spread; With adjustable and uniform droplets, the disinfectant fogger machine is applied for both space spray and residual spray.
        The solution pipe and air pipe are anti corrosion; the fogger head is anti-cracking, shockproof, and constant temperature. The lifespan of the whole machine is long.
        The scale of solution tank and translucent tank cover is easy for you to mix chemical solution precisely.
        Patented technology adopted to prevent the solution from flowing back.
        With frequency-conversion motor, adjustable delivery lift and noise, the fogger is very chemical saving…
Applications of Portable Disinfectant Fogging Machine:
        Disinfection, sterilization, pest control, air purification, anti-virus, disease prevention, epidemic prevention for hospital, school, hotel, household, warehouse, factory etc.
        The spraying disinfection and immunity for poultry farm, veterinary hospital, pet hospital, animal health center, entry-exit inspection and quarantine bureau, customs etc.
The specifications of XD-CD05A- Portable Disinfectant Fogging Machine | |||||
Technical specifications: | HTXD-CD05A – disinfecting fogger | ||||
Motor power (W) | 1000 W | ||||
Voltage(V) | 220/50Hz | ||||
Atomization Volume | 470ml/min (adjustable) | ||||
Tank Capacity | 5 L | ||||
Particle size | 10-150 μm (adjustable) | ||||
Corrugated pipe length | 380mm (standard), 750mm (optional) | ||||
Spray range | 8-10m | ||||
N./G.Weight | 2.61kg/3.78kg | ||||
Package measurement (Mm) | 560×240×320 |
